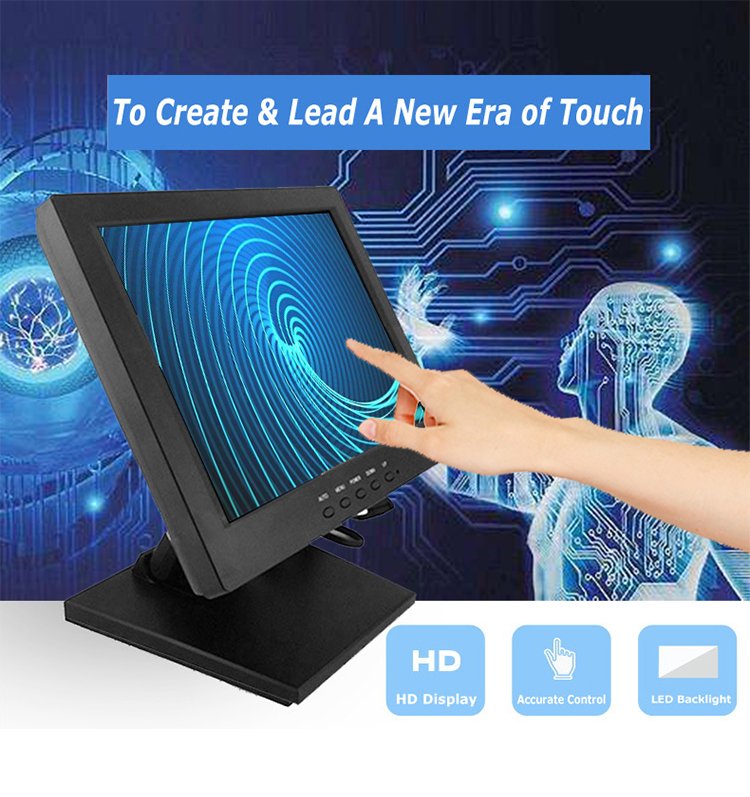

  • 10.4 inch Resistive Touch Screen Display

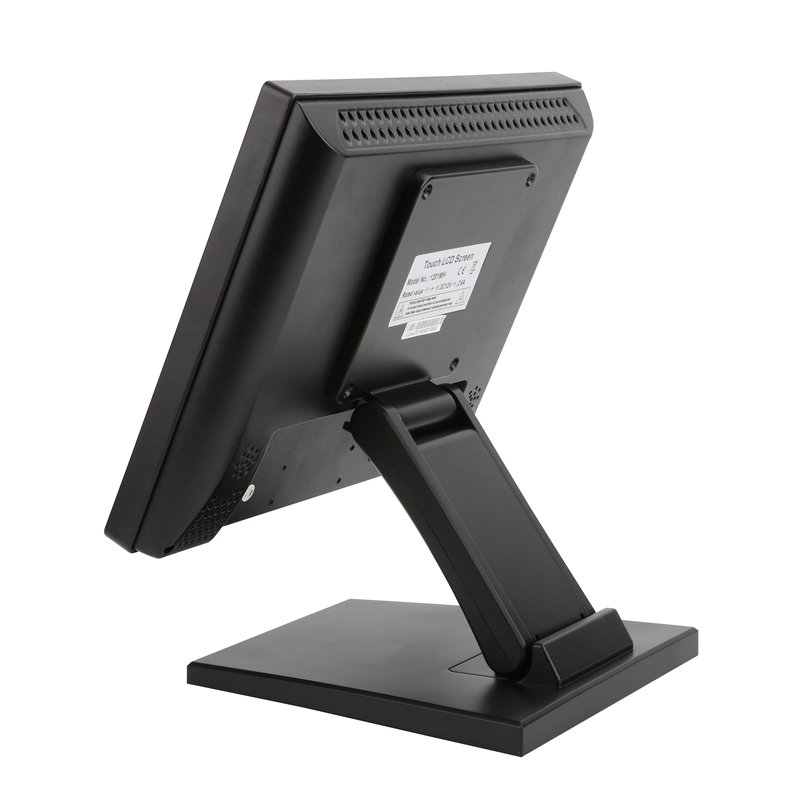

  • left side of 10.4 inch Resistive Touch Screen Display

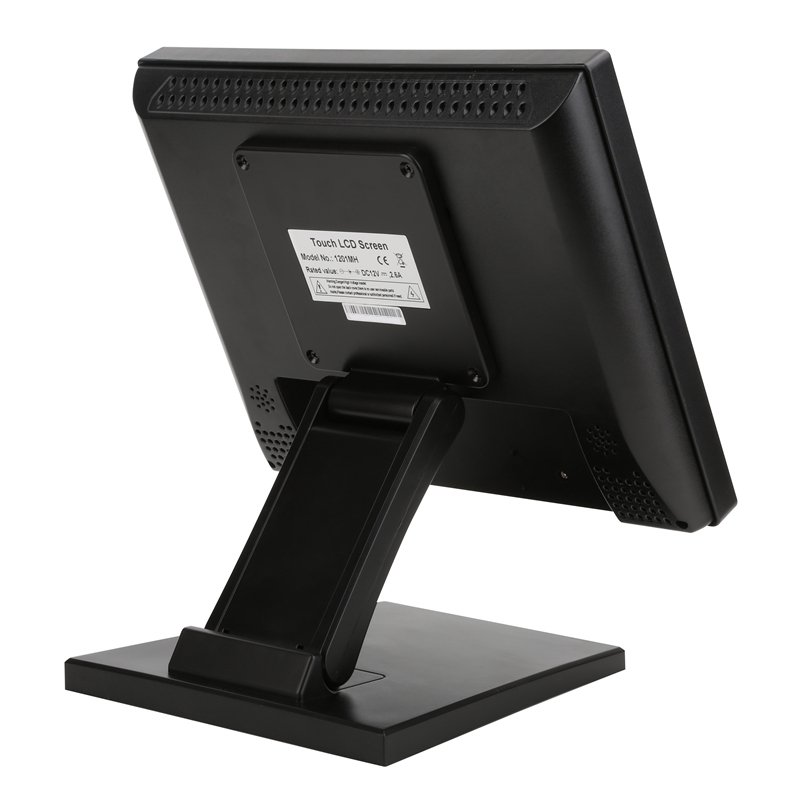

  • right side of 10.4 inch Resistive Touch Screen Display

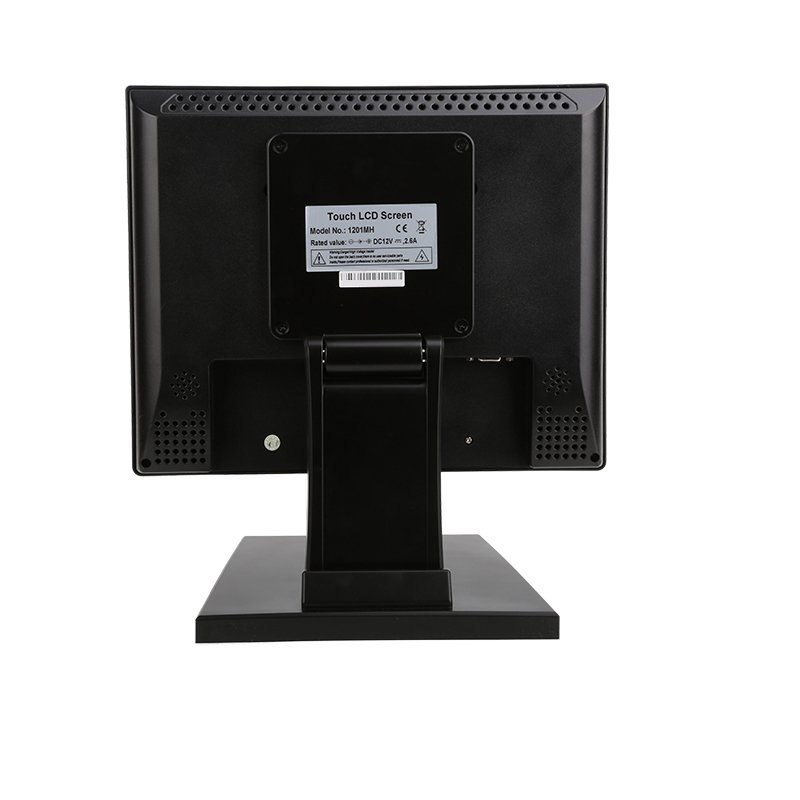

  • back view of 10.4 inch Resistive Touch Screen Display

10.4 inch Resistive Touch Screen Display 5ms Fast Response

Our 10.4 inch Resistive Touch Screen Display features sensitive 4-wire resistive touch with 5ms rapid response, no touch drift after one calibration. Equipped with 1024*768 HD 4:3 panel, wide viewing angle and adjustable metal stand. Built with VGA, USB interface, compatible with Windows/Linux/Mac. Durable for POS checkout, restaurant ordering, industrial control, medical kiosks and entertainment self-service equipment. Complete cables & touch pen included for plug-and-play

Panel size 10.4 inch TFT-LCD Touch Screen Monitor
Display area 245*285mm
Standard Resolution 1024*768
Number of Colors 16.2M
Brightness 300cd/m2
Response time 5ms
View angle Horizontal:160°
Vertical:130°
Contrase ratio 450:1
Video input format (analog) RGB
Connector VGA for video signal
USB (or RS232) for touch
Frequency 30~80KHz/60~75Hz
Power supply External Power Supply:100 to 240V  (DC 12V)
Operation Environment Workable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model 4-wire resistive touch
Optional (5-wire resistive touch,SAW,Infrared touch optional)
Duration 50000hours
touch validity >1,000,000
Net weight 3.0 Kgs/pcs,include stable mental base
Gross weight 4.5 Kgs/pcs,include stable mental base
Power consumption Max 30W
Setup (optional) 1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD  control AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interface USB or RS232 optional
Touch response time 2ms
Certificate CE, ROHS
Warranty 1year for panel, 3 years for spare parts
Monitor size(not include base) 300*245*44mm
Each unit box size 340*140*300mm
Package size 6pcs in a carton,carton size:650*450*410mm
Support Operation system Windows,Linux,Mac.
Categories:

Clear HD Screen Brings Comfortable View for Daily Work

This 10.4 inch Resistive Touch Screen Display uses a 4:3 standard screen with 1024*768 resolution. It shows bright, true-to-life colors with 300cd/m² brightness. The 16.2M rich colors make text and menu buttons easy to tell apart. Its wide viewing angle hits 160° horizontal and 130° vertical. No matter if you stand or sit in front of the screen, you can see all content clearly. For retail POS cash registers, restaurant order systems and industrial control desks, this sharp display cuts eye tiredness during long-hour shifts. As a core product, this 10.4 inch Resistive Touch Screen Display fits all business scenes that need steady clear visuals.

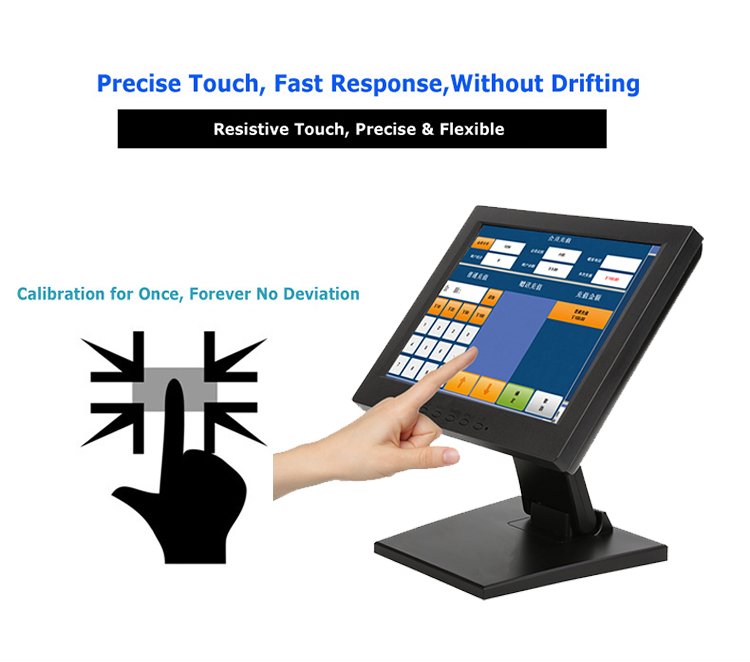

Sensitive Resistive Touch Reacts Quickly Without Shift

This product has a 4-wire resistive touch panel with only 2ms touch response and 5ms screen response time. You only need one simple calibration at first use, and the touch will never drift or offset later. It supports over one million touch taps, so it holds up to heavy daily taps in busy shops. You can tap with bare fingers, touch pens or even thin gloves. For hospital registration terminals and entertainment kiosks, fast touch cuts waiting time for every user, making service more smooth.

Flexible Ports & Adjustable Stand Fit Different Installation Needs

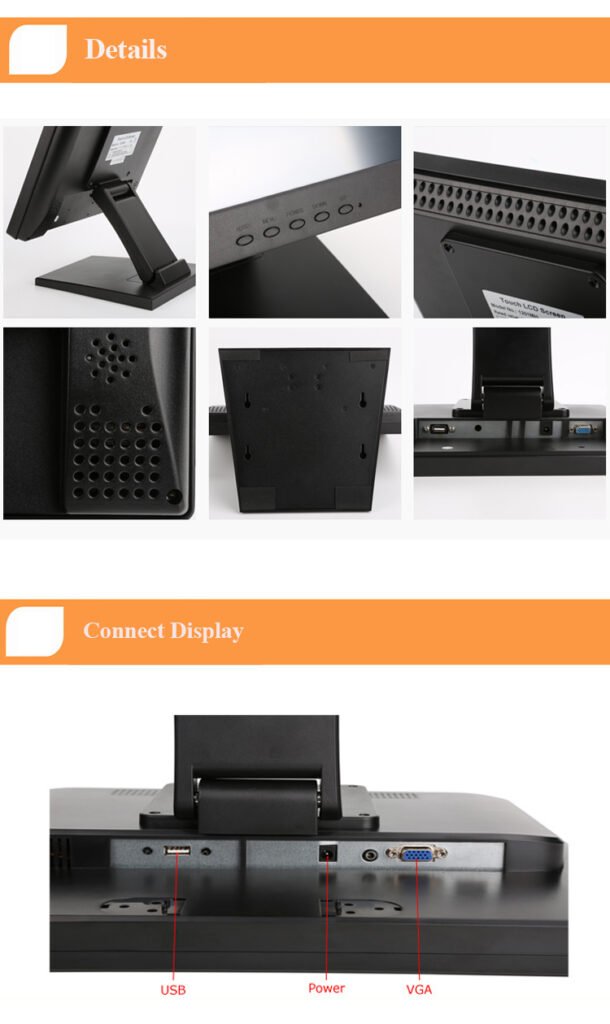

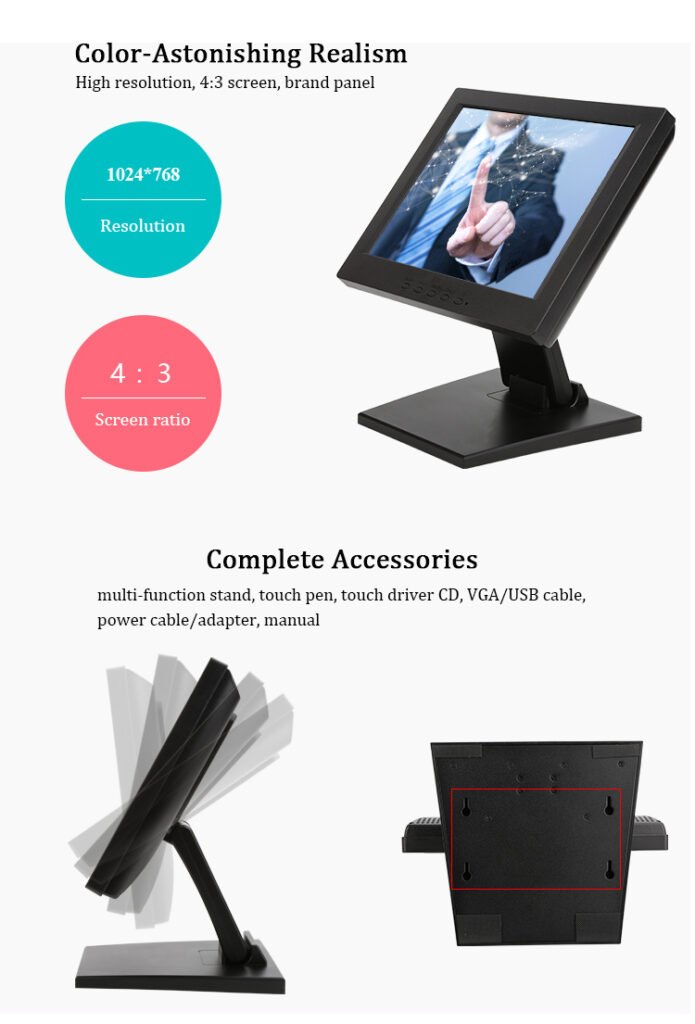

The back of this 10.4 inch Resistive Touch Screen Display carries VGA, USB and DC power ports. VGA sends clear video signals, and USB links the touch function to Windows, Linux or Mac computers. Its metal stand can tilt up and down freely to match your comfortable operation height. It also supports VESA wall mounting holes if you want to hang it on walls to save counter space. Built-in small speakers on the two sides can play simple prompt sounds for cash register alerts. The full set of free accessories includes touch pen, VGA cable, USB cable, power adapter and user manual, so you can start using it right after unpacking.

Stable Build & Wide Application for Many Industries

Made of solid black metal shell, this display only uses max 30W power and works well from -10°C to 60°C. It passes CE and ROHS safety tests with a 1-year screen warranty. People widely use this 10.4 inch Resistive Touch Screen Display in restaurant ordering, supermarket POS checkout, medical inquiry terminals, factory industrial control and entertainment self-service machines. It weighs 3kg alone and 4.5kg with package, easy to carry and ship in bulk cartons. The long 500,000-hour screen life lowers your replacement cost for long-term business use.
10.4 inch Resistive Touch Screen Display fast response 10.4 inch Resistive Touch Screen Display accessories of 10.4 inch Resistive Touch Screen Display details of 10.4 inch Resistive Touch Screen Display use range of 10.4 inch Resistive Touch Screen Display
