15.6 inch Wall Mount Resistive Touch Monitor with Metal Case
Our 15.6 inch Wall Mount Resistive Touch Monitor has 1080P full HD screen and durable resistive touch. Metal frame with heat holes keeps stable running in tough environments. It supports embedded & wall mounting, standard VGA/USB ports. Compatible with all common computer systems, widely used in industry, kiosks, medical and POS scenes. Complete accessories included for easy plug and play.
| Series | Metal case Open frame | ||
| LCD Type | 15.6” TFT-LCD （16:9） | ||
| Video Input | VGA and DVI , HDMI – optional | ||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||
| Mount Interface | 1)VESA 75mm and 100mm | ||
| 2)Mount bracket, horizontal or vertical | |||
| LCD Specification | |||
| Active Area(mm) | 304.8(H)×228.7(V) | ||
| Resolution | 1600*900 / 1920×1080 | ||
| Dot Pitch(mm) | 0.297×0.297 | ||
| Viewing angle (v/h) | 176°/176° | ||
| Contrast | 1000:1 | ||
| Luminance(cd/m2) | 350, 1000cd/m2 – optional | ||
| Response Time(Rising/Falling) | 5ms/6ms | ||
| Support Color | 16.7M | ||
| Touchscreen Specification | |||
| Type | Resistive touch | ||
| Touch Life Cycle | 10 millions | ||
| Touch Response time | 5ms | ||
| Touch System Interface | USB interface | ||
| All port together | 1*HDMI input 1* VGA input 1* 3.5mm earphone 1* DC port 5.5*2.1 1*USB 2.0 |
||
| Standard Accessories | 1*Power cable 1* power adapter 1*VGA/HDMI cable 1*USB 2.0 cable 1* Touch pen 1* user manual |
||
| Optional Accessories (Choose one from two) |
8*ear hooks 4*buckle hook |
||
| External AC Power Adapter | |||
| Output | DC 12V /2.6A | ||
| Input | 100-240 VAC, 50-60 Hz | ||
| MTBF | 50000 hr at 25°C | ||
| Environment | |||
| Operating Temp. | 0～50°C | ||
| Storage Temp. | -20～60°C | ||
| Operating RH: | 20%～80% | ||
| Storage RH: | 10%～90% | ||
Full HD Clear Screen Lets You Read Data Easily in Daily Work
This 15.6 inch Wall Mount Resistive Touch Monitor uses a 15.6-inch wide LCD screen. Its resolution is 1920*1080 Full HD. The screen shows bright and clear images. It has 300cd/m² brightness and rich colors. You can see screen content clearly from left, right, up and down sides. The screen responds in just 5ms. Pictures switch smoothly when you click menus. Workers use it to check data on factory machines or supermarket checkout systems. Everything on the screen is easy to tell apart. This 15.6 inch Wall Mount Resistive Touch Monitor brings comfortable viewing for long working hours.
Sensitive Resistive Touch Works Steadily with Heavy Daily Taps
This monitor uses 5-wire resistive touch. The touch reaction is very fast, only 2ms. You calibrate the touch once at first use. It will never shift or go wrong later. The touch surface supports over one million taps. It fits busy places like self-service kiosks and ATMs well. You can touch it with bare fingers, gloves or touch pens. Factory workers do not need to take off work gloves to operate it. We also offer infrared touch and capacitive touch for your choice.
Metal Open Frame Body Has Good Heat Loss & Flexible Mount Ways
The whole shell is strong metal open frame design. Many small heat holes sit on the back. They take hot air out quickly. So the monitor can work safely from -10℃ to 60℃. It will not break down under hot or cold conditions.It supports VESA wall hanging and embedded installation. You can fix it inside machines freely. Standard VGA and USB ports are built in. You can add HDMI, RS232 and other ports if you need. It works with Windows, Linux and Mac computers simply. It uses little power, only up to 30W every time.
Wide Uses & Full Accessories Help You Start Using Quickly

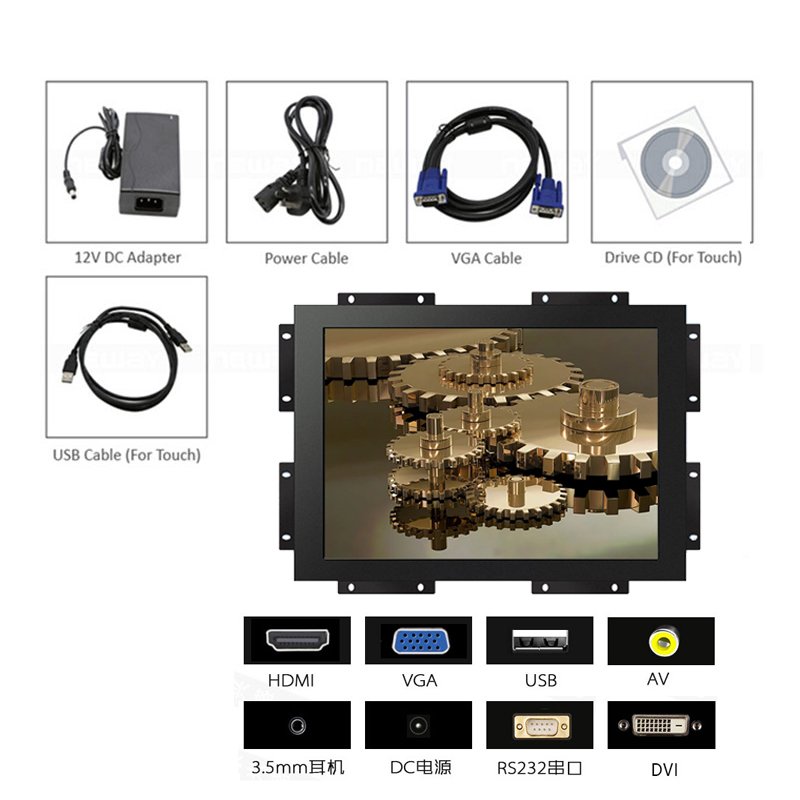

This touch monitor gets CE and ROHS safety certificates. The screen can last 50,000 working hours. We give a 1-year warranty for spare parts.People use it for industrial control, medical devices, POS cash registers, transport terminals and gaming machines. The package has power adapter, power cord, VGA cable, USB cable and driver CD. All needed parts are ready. You can set it up and use it right after you open the box.
