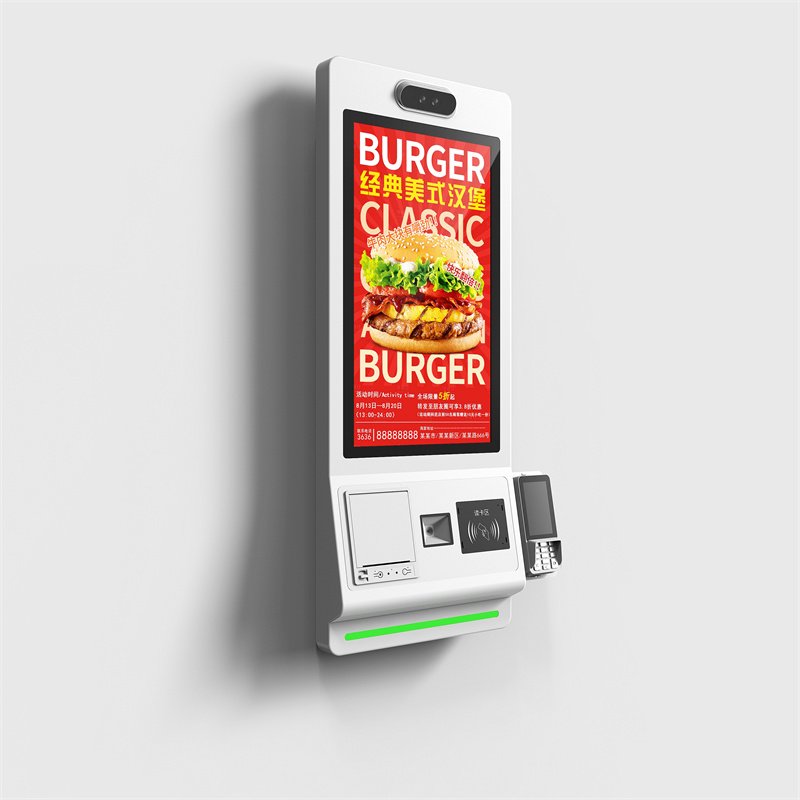

  • left side of 18.5 inch Vertical Self Checkout Kiosk

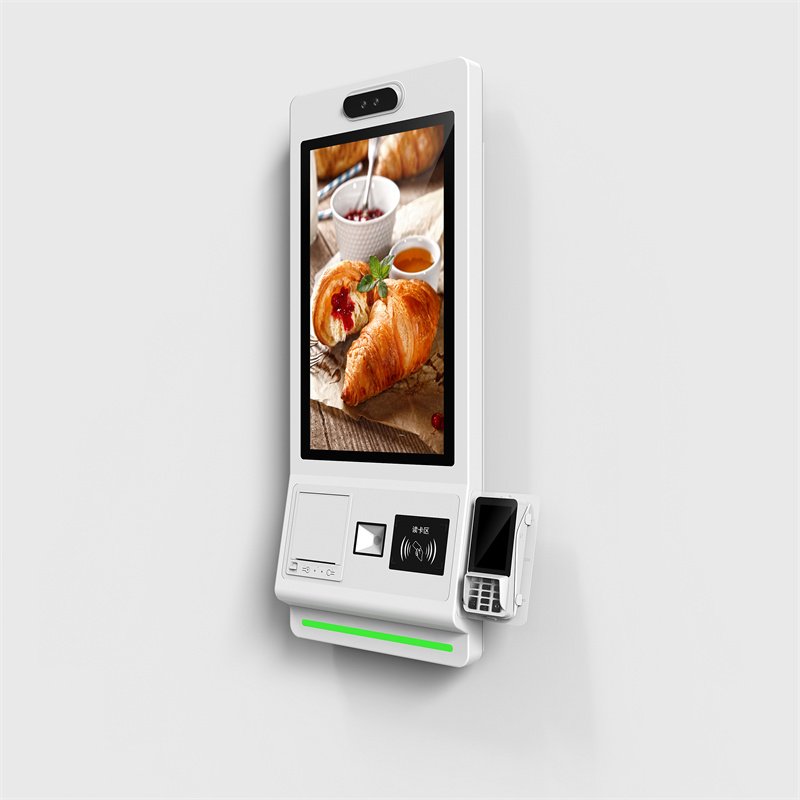

  • right side of 18.5 inch Vertical Self Checkout Kiosk

18.5 inch Vertical Self Checkout Kiosk Wall Mounted with NFC

This wall-mounted 18.5 inch vertical self checkout kiosk adopts a detachable modular structural design, integrating barcode scanning module, NFC payment induction area and automatic receipt printer into one whole device. The replaceable bottom cover brings huge convenience for later equipment maintenance and component replacement, effectively lowering your after-sales repair cost. Flexible adjustable screen angle adapts to various customer groups, while stable hardware configuration and multi-system compatibility ensure long-time continuous operation in supermarkets, convenience stores, pharmacies and other retail scenarios. Deploying this self-service payment terminal can effectively ease checkout queuing pressure for customers, greatly cut long-term manual cashier expenses, and save valuable indoor store space to place more commodities for higher business profits

Resolution 1280×720/1280×1024/1920X1080
Display Brightness 250-500 cd/m2
viewing angle 85/85/85/85
Support colors 16.7M , 72% NTSC
Refresh rate 60-120hz
Contrast ratio 1000:1
Screen ratio vertical 16:9
Response time 3.8/1.2 (Typ.)(Tr/Td) ms
Panel Type TN/IPS
Operation temperature  0 ~ 50 °C
Storage temperature  -20 ~ 60 °C
CPU type i3/i5/i7/N97/N100/J6412/N5095
MB RAM 4G/ 8GB / 16G
Hard disk capacity 128G /256GB / 512G
operating system Default system Win10 (Win9, (Win11, Linux system optional)
WIFI/Bluetooth WIFI 5.0, Bluetooth 4.2
working voltage 110~220V50-60HZAC,DC12V/5A
Bracket ID Integrated shaft
Pitch -5°±135°
switch have
Horn specifications 2 * 2W (4 Ω 8w/4 Ω 3W optional/not included in regular quotation)
DC-IN interface 1 DC5.5*2.5
HDMI interface 1(HDMI 1.4)
VGAI interface 1
USB 3.0 interface 2
RJ45 LAN interface 2
Audio output interface 1
MIC-IN interface 1
COM interface 1
USB 2.0 interface 2
Categories:

Easy & Comfortable Screen Experience for Daily Customer Use

Our 18.5 inch vertical self checkout Kiosk delivers friendly screen performance to remove operation troubles for shoppers. The vertical screen layout fits natural standing checkout habits, so buyers do not need to bend down or raise arms awkwardly when scanning products or finishing payment. Moderate screen brightness works well in bright supermarket and store environments, without glaring light or dim unclear pictures. Fast screen response removes lag during frequent tapping actions, letting customers complete checkout steps in a short time. The screen panel works steadily in normal store temperature ranges, supporting long daily working hours without black screen or color error.

Strong Stable Hardware Cuts Your Store Operation Troubles

This 18.5 inch vertical self checkout Kiosk uses upgradeable core hardware to match different store operation scales. Shop owners can choose proper processor, memory and storage according to their daily order volume. It runs smoothly on mainstream Windows systems, and Linux is available if your shop uses special management software. Stable Wi-Fi and wired network connections keep payment data and order information transmit safely to your back-end system. Plenty of reserved ports help you link extra retail devices freely, and standard global voltage design lets you use the machine in most countries without extra power adapters. Only small part of these hardware specs guarantee long-term stable daily use for your retail business.

Modular Wall-mounted Design Greatly Reduces Your Long-term Store Operating Cost

The wall-mounted body abandons bulky floor-standing brackets, saving valuable indoor floor space that you can use to display more goods and boost overall shop sales revenue. The lower functional cover plate is fully replaceable, which perfectly combines three essential retail parts: barcode scanner for commodity identification, thermal receipt printer for transaction vouchers and NFC reader for card payment settlement. Shoppers can scan goods, pay via NFC cards and collect printed receipts on this single kiosk completely by themselves, requiring no manual help from cashiers. The screen angle can be tilted from -5° to 135°, matching users of different heights for a relaxed operating posture. With this integrated self-service terminal, one staff member can manage several kiosks at once, directly cutting regular cashier labor costs. Built-in speakers send clear voice guidance step by step, so first-time users can finish payment procedures quickly without any staff explanation.

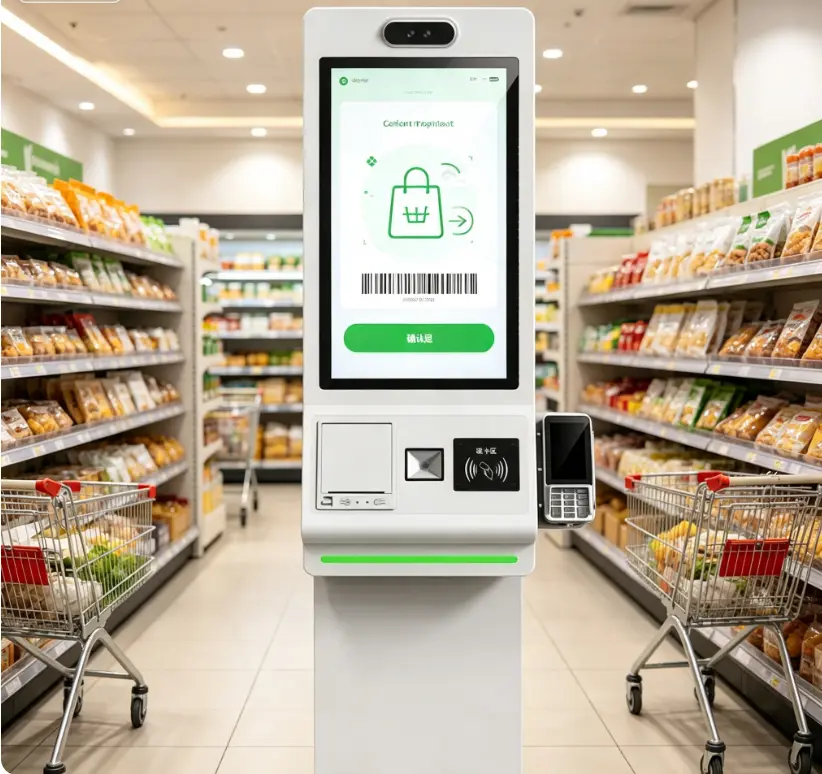

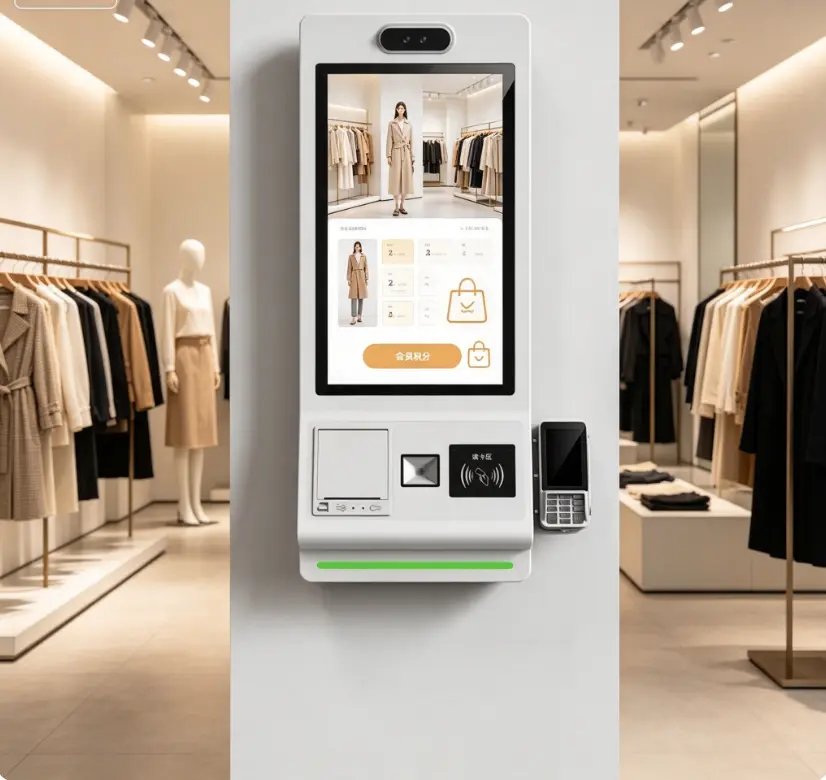

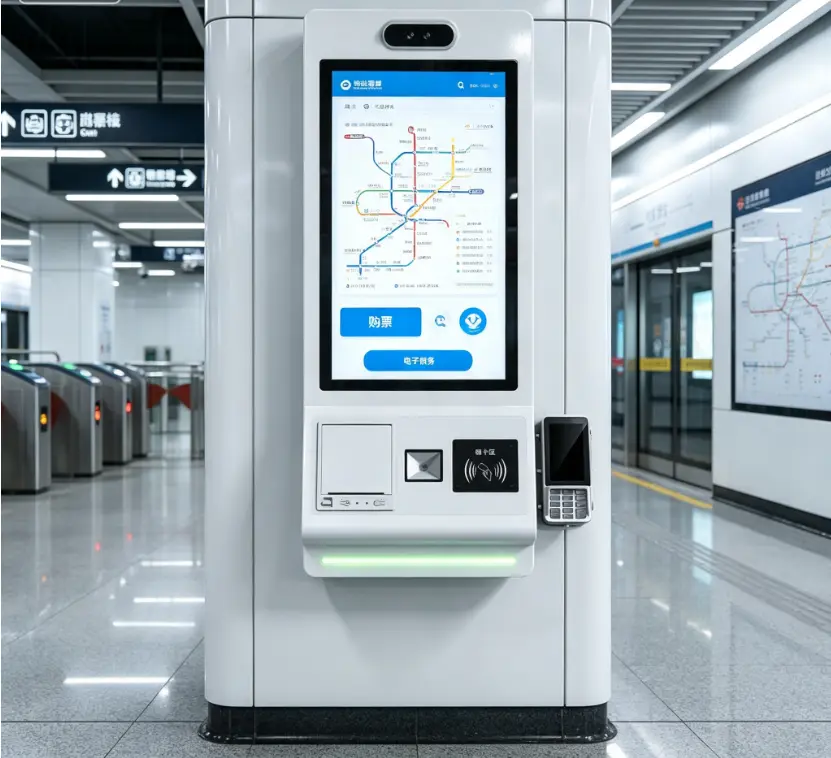

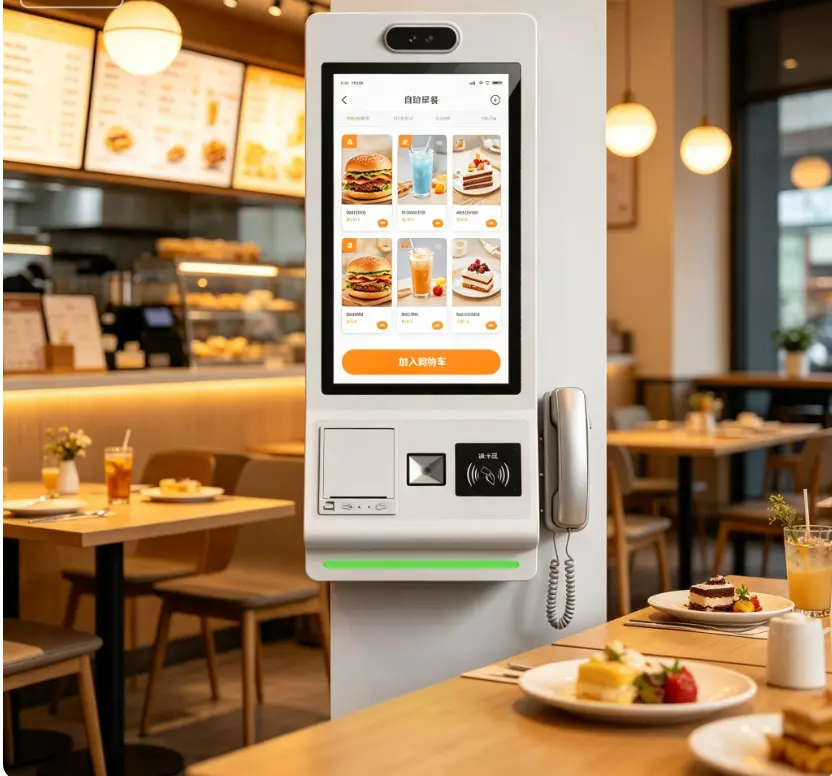

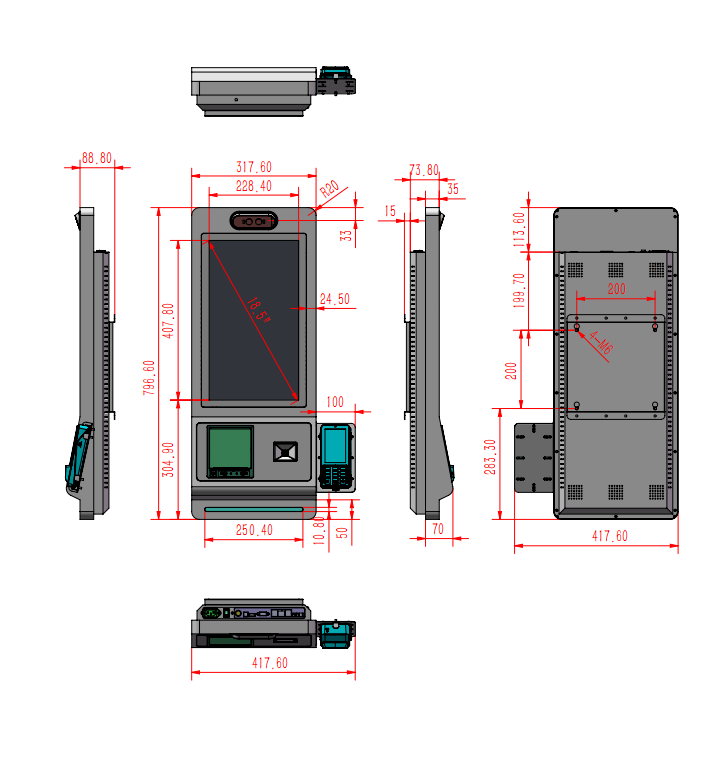

left side of 18.5 inch Vertical Self Checkout Kiosk 18.5 inch Vertical Self Checkout Kiosk right side of 18.5 inch Vertical Self Checkout Kiosk 18.5 inch Vertical Self Checkout Kiosk use for retail store 18.5 inch Vertical Self Checkout Kiosk use for clothes store 18.5 inch Vertical Self Checkout Kiosk use for subway station 18.5 inch Vertical Self Checkout Kiosk use for restaurant drawing of 18.5 inch Vertical Self Checkout Kiosk
