Self-service Terminal Kiosk 23.8 Inch Capacitive Touch for Retail
This 23.8‑inch self‑service terminal kiosk comes with high‑sensitive capacitive touch screen, delivering smooth and quick touch response for retail environments. Built with industrial‑grade sturdy structure, it supports flexible system integration and customized interface settings, widely applied for self‑checkout, self‑ordering and customer information inquiry. It helps retail stores reduce manpower cost, speed up service procedures and bring better self‑service experience for end customers.
| Screen parameters |
Panel type | IPS (BOE, CSOT, HKC) A+ grade | |
| Panel size | 23.8 | ||
| Show area | 293.2*521.2 | ||
| resolution ratio | 1920(RGB)×1080, FHD | ||
| View angle | 89/89/89/89 (Typ.) (CR≥10) | ||
| Display scale | 0.672916666666667 | ||
| Backlight type | LED | ||
| Display brightness | 300 cd/m² (Typ.) | ||
| frame rate | 60Hz | ||
| Supported colors | 16.7M，72%NTSC | ||
| contrast ratio | 4000:1 (Typ.) (Transmission) | ||
| Default color temperature | 6500 | ||
| Display mode | AMVA, often black, transparent | ||
| curvature | plane | ||
| Touch parameters |
touch technology | projective capacitance technology | |
| Touch Scheme | G+G | ||
| Touch points | Valid touch at 10:00 | ||
| touch medium | Finger or capacitive stylus | ||
| touch accuracy | ≦2mm | ||
| response time | ≦6ms | ||
| drive mode | immunity from exemption | ||
| touch interface | USB | ||
| surface hardness | ≥6H | ||
| working voltage | 5V | ||
| data output mode | Coordinate output | ||
| Mainboard Configuration | (Choose 1 OS 2) | Android | Windows |
| CPU | android RK3566, 4-core ARM Cortex-A55 | I5 4200M | |
| System version | Android11 | Windows 10，Windows11， | |
| mode of operation | capacitive touch | capacitive touch | |
| internal storage RAM | DDR 2GB | DDR 4GB | |
| memory | SSD 32G | 128G | |
| Network Support | WIFI-2.4G/5G、RJ45、4G | WIFI-2.4G/5G、RJ45、4G | |
| HDMI | 1 HDM interface | 1 HDM interface | |
| USB | 1 USB-3.0 port, 1 USB-2.0 port | 1 USB-3.0 port and 2 USB-2.0 ports | |
| network interface | RJ45 10/100M network auto-adaptation | RJ45 10/100M network auto-adaptation | |
| camera | optical size | 1/2.7″ COMS sensor | |
| sensor resolution | 1920 (H) x 1080 (V) | ||
| maximum frame rate | 30fps@1080P | ||
Enjoy Smooth Operation with 23.8 Inch Self‑service Terminal Kiosk
This 23.8 Inch self-service terminal kiosk brings easy and fast self‑service experience for retail shops, restaurants and supermarkets. It uses high‑quality IPS A‑grade screen with 1920*1080 FHD resolution. The 300 cd/m² brightness makes content clear even under bright indoor lights. G+G projective capacitive touch supports 10‑point touch. Users can tap, select goods and finish orders without delay. Touch response time is under 6ms, surface hardness reaches 6H, so it resists daily scratch from heavy public use. Customers will not wait long when placing food orders or checking shopping bills.
Flexible System Choices Fit Different Business Needs
You can pick Android 11 or Windows OS for this self‑service kiosk. Android version runs on RK3566 chip with 2GB DDR and 32GB storage. Windows option uses i5‑4200M CPU, 4GB DDR and 128GB SSD. Both versions support WiFi, RJ45 wired network and optional 4G. Stable network keeps ordering and payment steps running smoothly during peak shopping hours. Business owners may install their own shop software to match local retail workflow. Wall‑mount and floor‑standing installation styles let you place the machine on counter, wall or stand on shop floor freely.

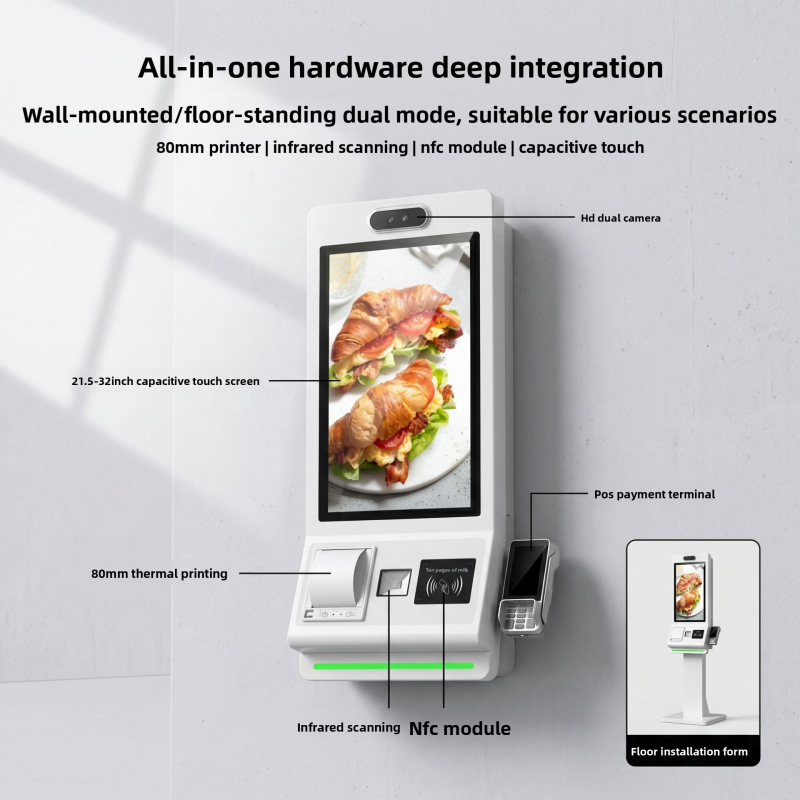

All‑in‑one Built‑in Modules Cut Extra Hardware Cost
The 23.8 Inch self‑service terminal kiosk packs many practical functions inside one unit. It has an 80mm thermal printer with max 180mm/s print speed to output receipts quickly. 2D scanner reads QR codes and common barcodes for product scanning. NFC card reader supports Mifare series contactless cards for card payment. HD 1080P top camera supports face recognition. Built‑in speakers play voice hints to guide new users step‑by‑step. You do not need to buy separate printer, scanner or card reader. It saves your budget and keeps checkout area tidy.
Reliable Hardware Works Long Time in Public Space
Made of spray‑coated metal body and tempered glass front panel, the kiosk fits busy public environment. Working temperature ranges from 0℃ to 55℃. It can keep steady performance in hot shopping malls or busy fast‑food stores. White‑black main color supports custom color change to match your store decoration. Complete accessories including power cord, keys and wrench help fast on‑site installation. It works well for self‑ordering, self‑checkout, ticketing and queue‑call tasks for retail, catering and service centers
