4/5 Wire Resistive 15 inch Touch Screen Monitor USB interface
This 4/5 wire resistive 15 inch touch screen monitor adopts high-quality LED LCD panel to present clear images without light leakage. The stable resistive touch supports glove input and long-term frequent tapping. Equipped with USB touch transmission and VGA video interface, it connects to most mainstream computer systems easily. With adjustable metal bracket and reserved wall mounting holes, it can adapt to various installation ways. Complete supporting accessories are delivered together to help merchants deploy the device rapidly for industrial control, POS cash systems, bank terminals and other commercial scenarios.
| Panel size | 15 inch 4/5 Wire Resistive Touch Screen Monitor |
| Display area | 304*228mm |
| Standard Resolution | 1024*768 |
| Number of Colors | 16.2M |
| Brightness | 300cd/m2 |
| Response time | 5ms |
| View angle | Horizontal:160°Vertical:140° |
| Contrase ratio | 1000:1 |
| Video input format | (analog) RGB |
| Connector | VGA for video signalUSB (or RS232) for touch |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°COperate relative humidity:20% to 80%;storage relative humidity:10% to 90% |
| Touch model | 4-wire resistive touch |
| Optional | (5-wire resistive touch,SAW,Infrared touch optional) |
| Duration | 50000hours |
| touch validity | >1,000,000 |
| Net weight | 6.0 Kgs/pcs,include stable mental base |
| Gross weight | 6.5 Kgs/pcs,include stable mental base |
| Power consumption | Max 30W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm.2) provide stable mental base to support the monitor. |
| OSD control | AUTO,+,POWER,-,MENU.brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset. |
| Touch interface | USB or RS232 optional |
| Touch response time | 2ms |
| Certificate | CE, ROHS |
| Warranty | 1 year,provide spare parts |
| Monitor size(not include base) | 37528555mm |
| Each unit box size | 420370155mm |
| Package size | 4pcs in a carton,carton size:650450430mm |
| Operation system | Windows,Linux,Mac. |
High-Grade Screen Panel Delivers Bright, Clean Display for Daily Work
This 4/5 wire resistive 15 inch touch screen monitor uses premium A-grade LCD panels with LED backlight. It reaches 300cd/m² brightness and 1024*768 resolution. There are no light leaks, spots or thin lines on the screen surface. The wide viewing angles of 160° horizontal and 140° vertical let staff read data clearly from different standing angles. Its 5ms screen response makes picture switching smooth during frequent operation on POS or industrial control systems. This 4/5 wire resistive 15 inch touch screen monitor offers steady clear visuals for long-hour continuous commercial use.
Sensitive Resistive Touch Supports Stable, Heavy Daily Operations
This monitor supports 4-wire and optional 5-wire resistive touch with only 2ms touch response speed. Users finish one simple calibration at first use, and touch positions will never shift or drift later. The touch layer can stand over one million taps, which fully matches busy working scenes like supermarket checkout machines and factory control panels. Workers can operate the screen with bare fingers, gloves or matched touch pens. It brings great convenience for employees wearing protective gloves in industrial production workshops.
Rich Interfaces & Flexible Structure Fit Different Installation Needs

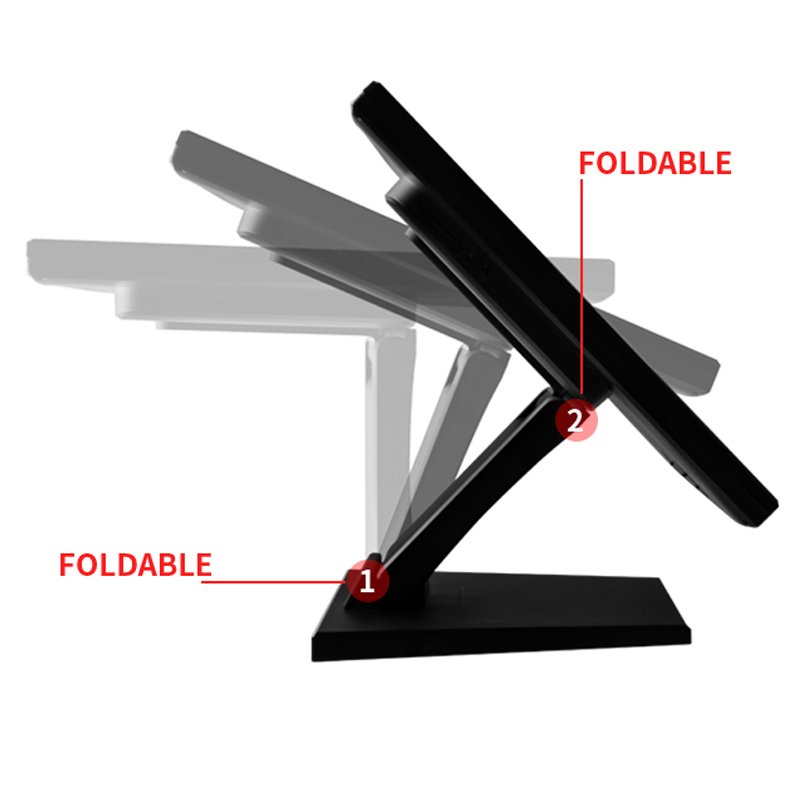

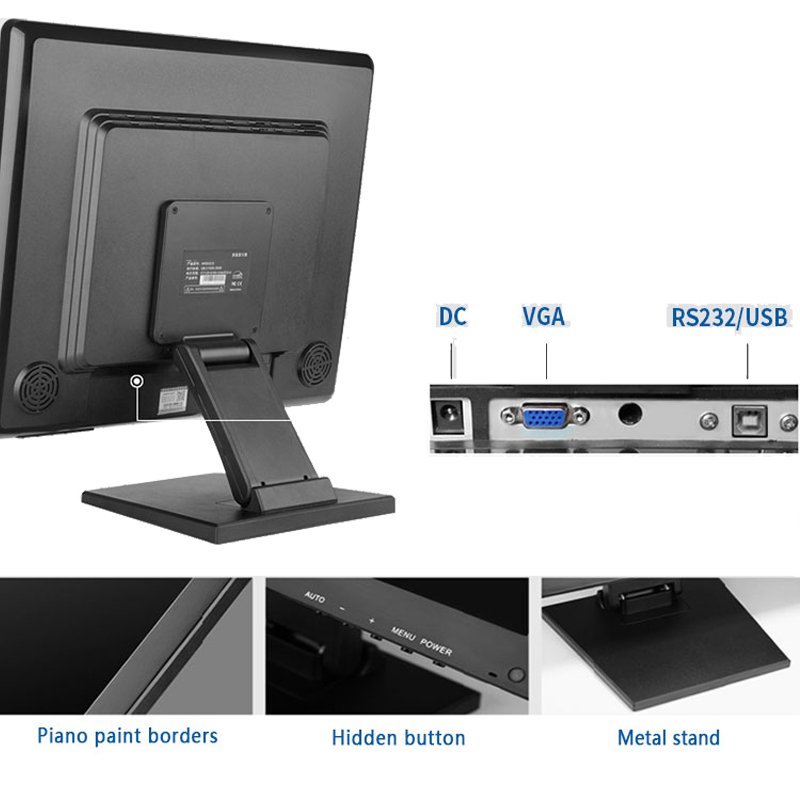

The monitor is built with standard VGA video port, USB touch port and optional RS232 port. It works well with Windows, Linux and Mac systems for quick plug-and-play connection. The solid metal stand supports angle adjustment for comfortable operation posture. VESA 75mm and 100mm mounting holes are reserved for wall installation to save desktop space. Piano paint frame and hidden physical buttons keep the whole device neat and tidy. Good heat vent design lets the monitor run safely between -10°C and 60°C without overheating problems.
Wide Application & Complete Accessories Cut Extra Purchase Costs

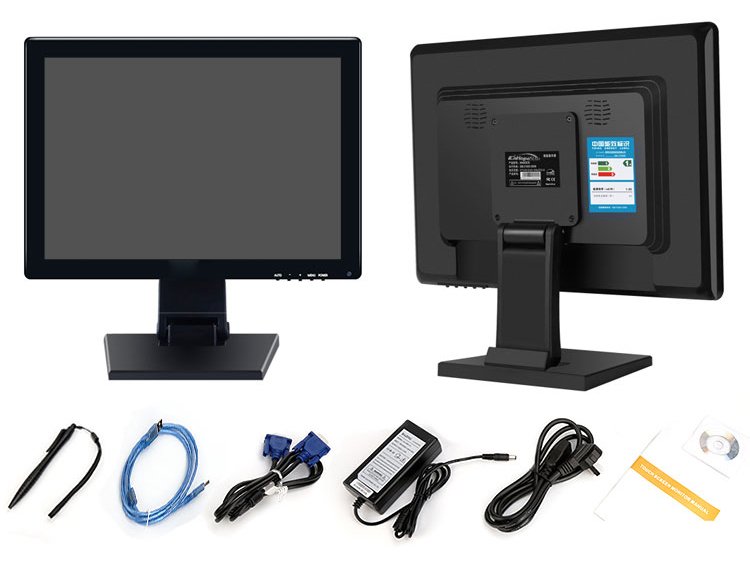

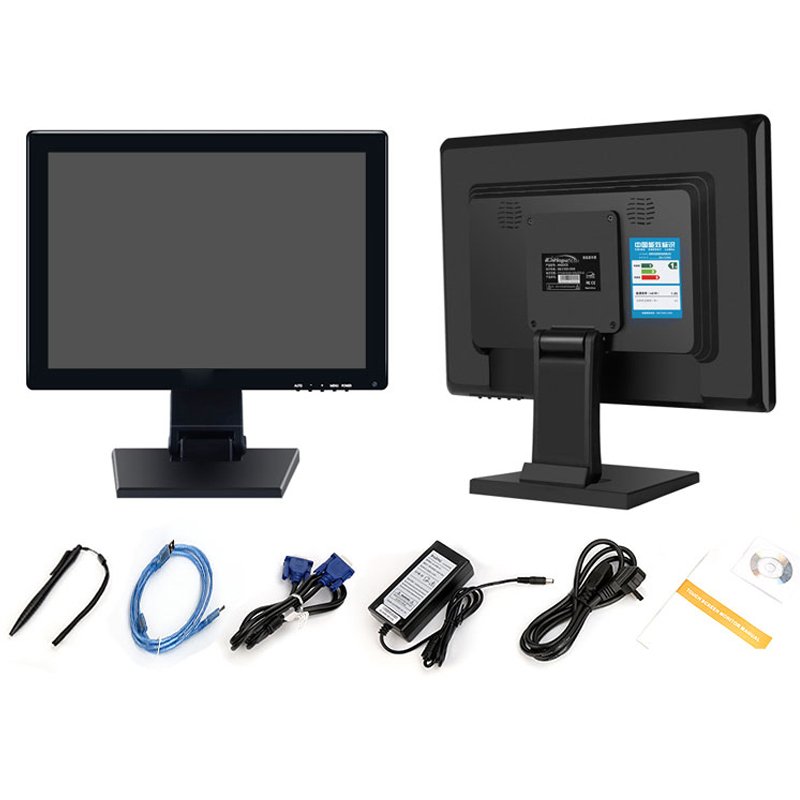

This touch monitor has CE and ROHS certificates with a one-year spare part warranty. It is widely used in industrial automation, POS payment terminals, bank service equipment, medical devices and advertising machines. The full package contains a touch pen, VGA cable, USB cable, power adapter and user manual. Buyers can finish setup and official use right after opening the package with no extra parts needed.
