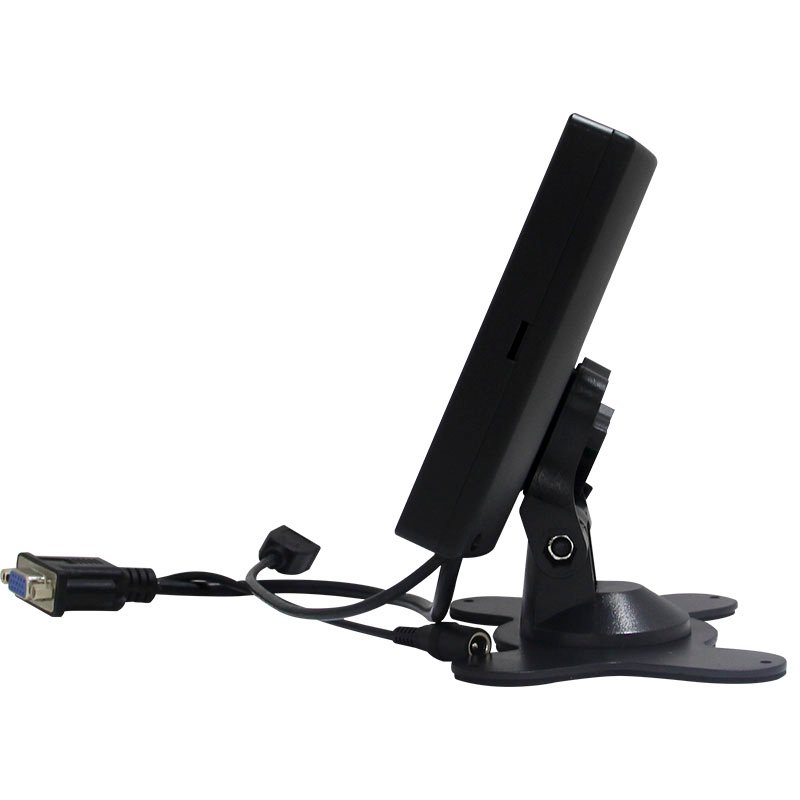

  • side view of 8 inch Resistive Touch Screen Monitor

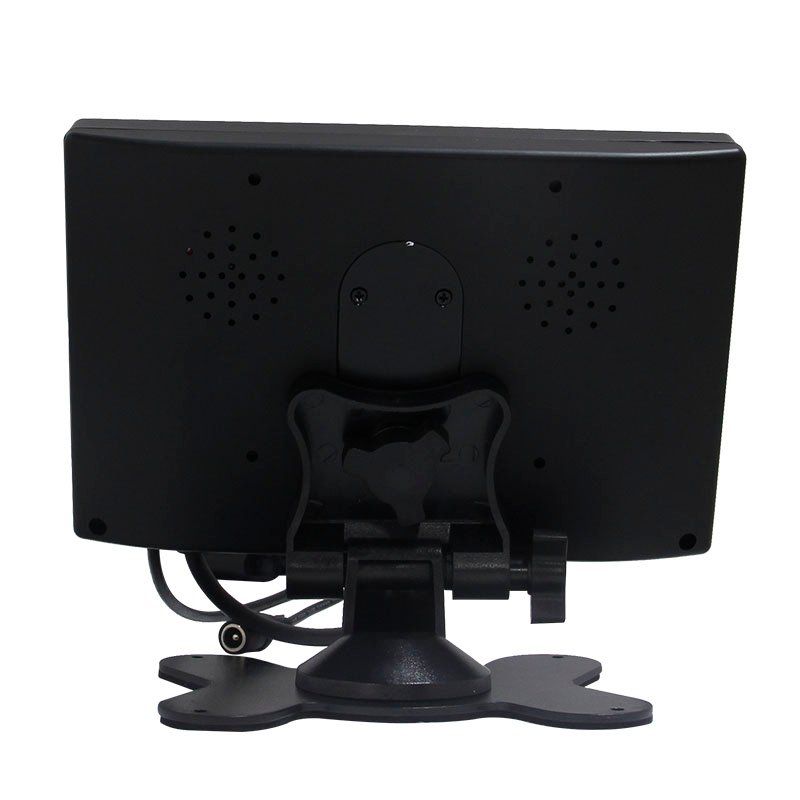

  • back view of 8 inch Resistive Touch Screen Monitor

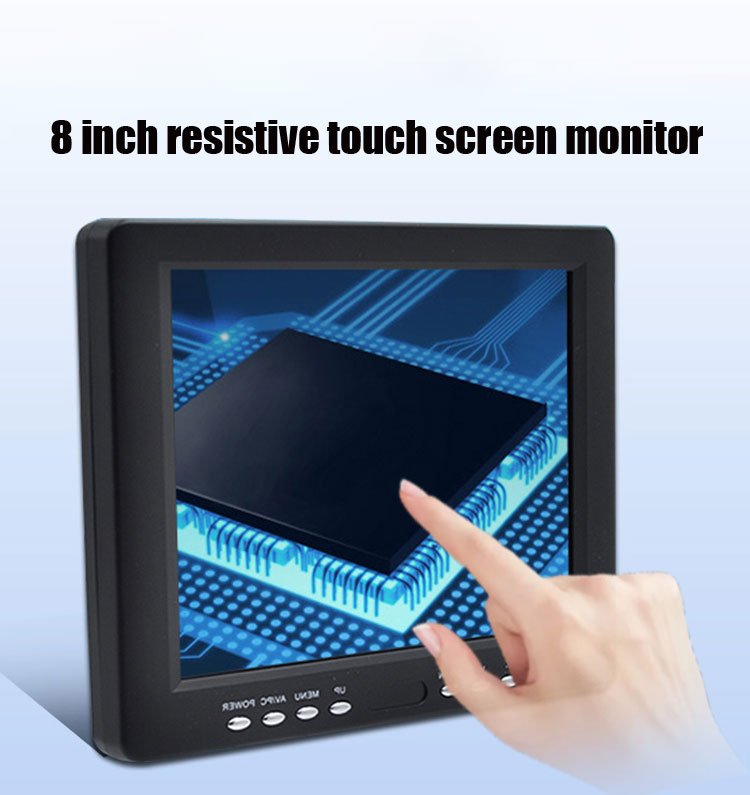

8 inch Resistive Touch Screen Monitor 5ms Energy Saving

Our 8 inch Resistive Touch Screen Monitor features 5ms rapid response time and energy efficient design. Equipped with full video ports and wide temperature adaptability, it supports 24-hour continuous operation, widely used in factory machines, ticketing systems and vehicle display devices.
Panel size 8 inch TFT-LCD Touch Screen Monitor
Display area 245*285mm
Standard Resolution 800*600
Number of Colors 16.2M
Brightness 300cd/m2
Response time 5ms
View angle Horizontal:160°
Vertical:130°
Contrase ratio 450:1
Video input format (analog) RGB
Connector VGA for video signal
USB (or RS232) for touch
Frequency 30~80KHz/60~75Hz
Power supply External Power Supply:100 to 240V  (DC 12V)
Operation Environment Workable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model 4-wire resistive touch
Optional (5-wire resistive touch,SAW,Infrared touch optional)
Duration 50000hours
touch validity >1,000,000
Net weight 3.0 Kgs/pcs,include stable mental base
Gross weight 4.5 Kgs/pcs,include stable mental base
Power consumption Max 30W
Setup (optional) 1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD  control AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interface USB or RS232 optional
Touch response time 2ms
Certificate CE, ROHS
Warranty 1 year for panel, 3 years for spare parts
Monitor size(not include base) 300*245*44mm
Each unit box size 340*140*300mm
Package size 6pcs in a carton,carton size:650*450*410mm
Operation system Windows,Linux,Mac.
Categories:

1. Clear Product Overview: 8 inch Resistive Touch Screen Monitor for Multi-Scenario Use

This 8 inch Resistive Touch Screen Monitor is a practical industrial display with 5ms fast response and energy-saving design. It uses 4-wire resistive touch, so you can tap it with fingers, gloves or stylus pens without special tools. The screen owns 800*600 standard resolution and 300cd/m² brightness, showing clear pictures even in bright rooms. Its 5ms response time cuts screen blur, which makes daily operation smooth and easy. As a low-power monitor, it saves electricity for long-time running, fully matching its energy-saving feature.

2. Stable Working Performance: Wide Temperature & Good Heat Dissipation

The 8 inch Resistive Touch Screen Monitor supports long continuous work with reliable cooling structure. It works normally from -10℃ to 60℃, and can be stored safely between -20℃ and 60℃. Built-in circulating heat vents take heat away fast, stopping overheat after 24-hour non-stop use. Its max power consumption is only 30W, the energy-saving design lowers heat production at the same time. The screen’s service life reaches 50,000 hours, and the touch point can work over 1 million taps, so you do not need to fix it often.

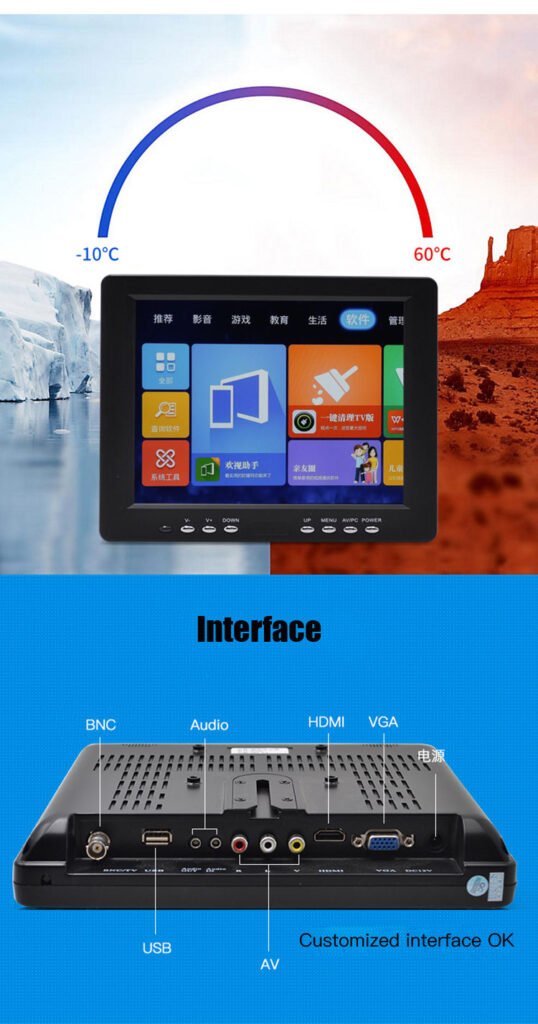

3. Rich Connect Interfaces: Link Almost All Common Devices Freely

This touch monitor has complete multi-type ports to fit different devices. It comes with HDMI, VGA, BNC, AV, USB and Audio interfaces, and we accept customized interfaces as you need. You can connect it to host computers, laptops, DVD players, set-top boxes, cameras, game consoles and Android TV boxes directly. The touch signal transmits via USB or RS232 line, and it fits Windows, Linux and Mac operating systems perfectly. All ports are easy to plug and pull, bringing simple setup for daily work.

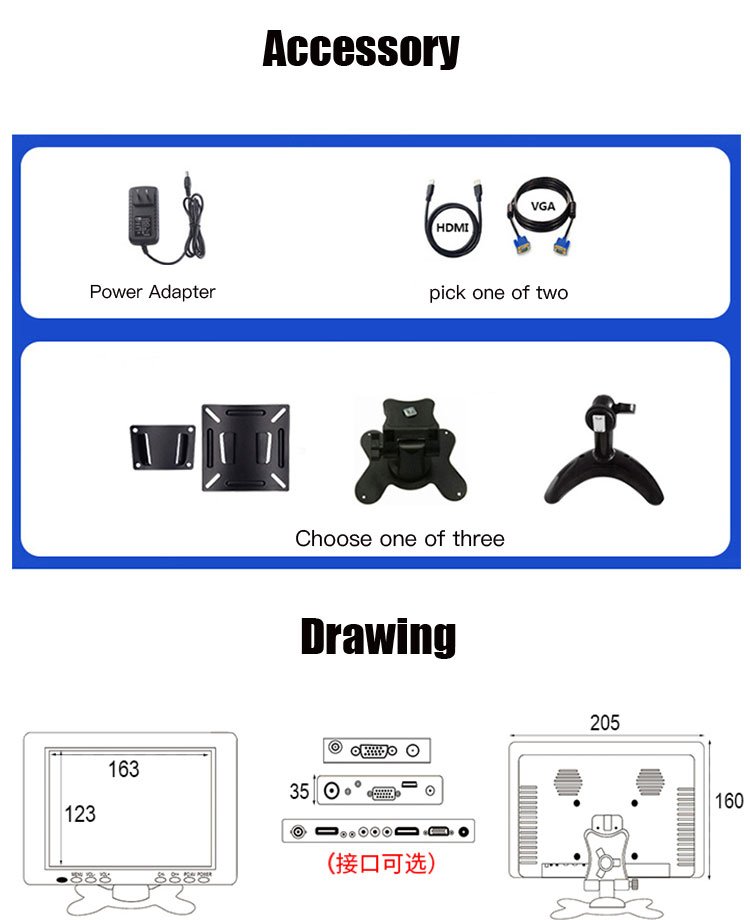

4. Flexible Installation & Complete Matching Accessories

Users can install this 8 inch Resistive Touch Screen Monitor in three ways with matched parts. We offer three stands for choice: desktop base, wall-mount VESA bracket (75mm standard hole) and fixed back plate. The full accessory set includes power adapter, you can pick HDMI or VGA cable as you like. The whole monitor body is compact, only 30024544mm without base, easy to place on desks or fix on equipment walls. All spare parts are packed with foam inside cartons to avoid damage during transport.

5. Wide Application Scenarios: Fit Industrial, Commercial & Medical Fields

Thanks to its durable resistive touch and energy-saving design, this monitor works well in many places. Factories use it as industrial equipment control screens; banks and ticket offices run it for service systems. It also fits medical devices, car display panels and monitoring equipment. It gets CE and ROHS certificates, meets global safety standards. We provide 1-year warranty for the screen panel and 3-year warranty for all spare parts, so buyers get long-term after-sale support.
8 inch Resistive Touch Screen Monitor

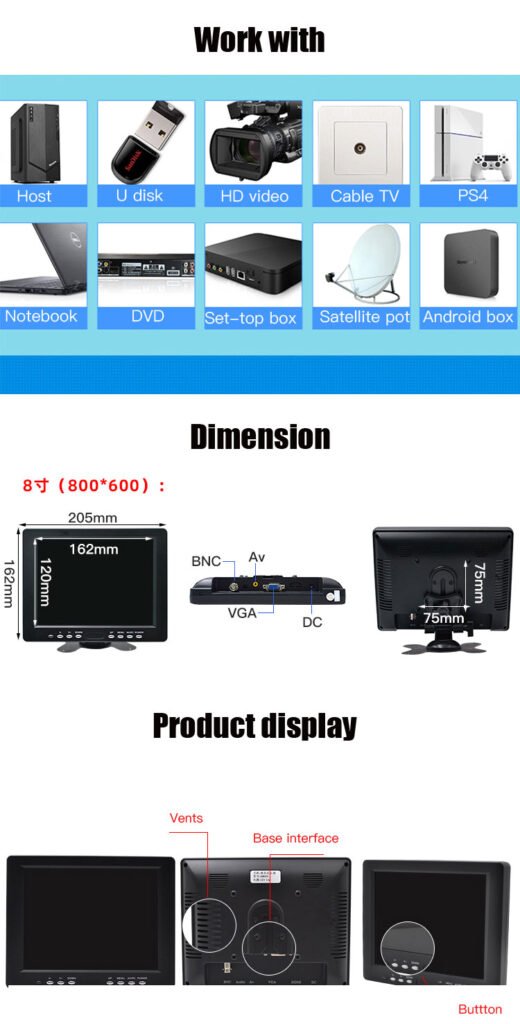

energy saving 8 inch Resistive Touch Screen Monitor working environment and interface of 8 inch Resistive Touch Screen Monitor dimension of 8 inch Resistive Touch Screen Monitor accessory of 8 inch Resistive Touch Screen Monitor
